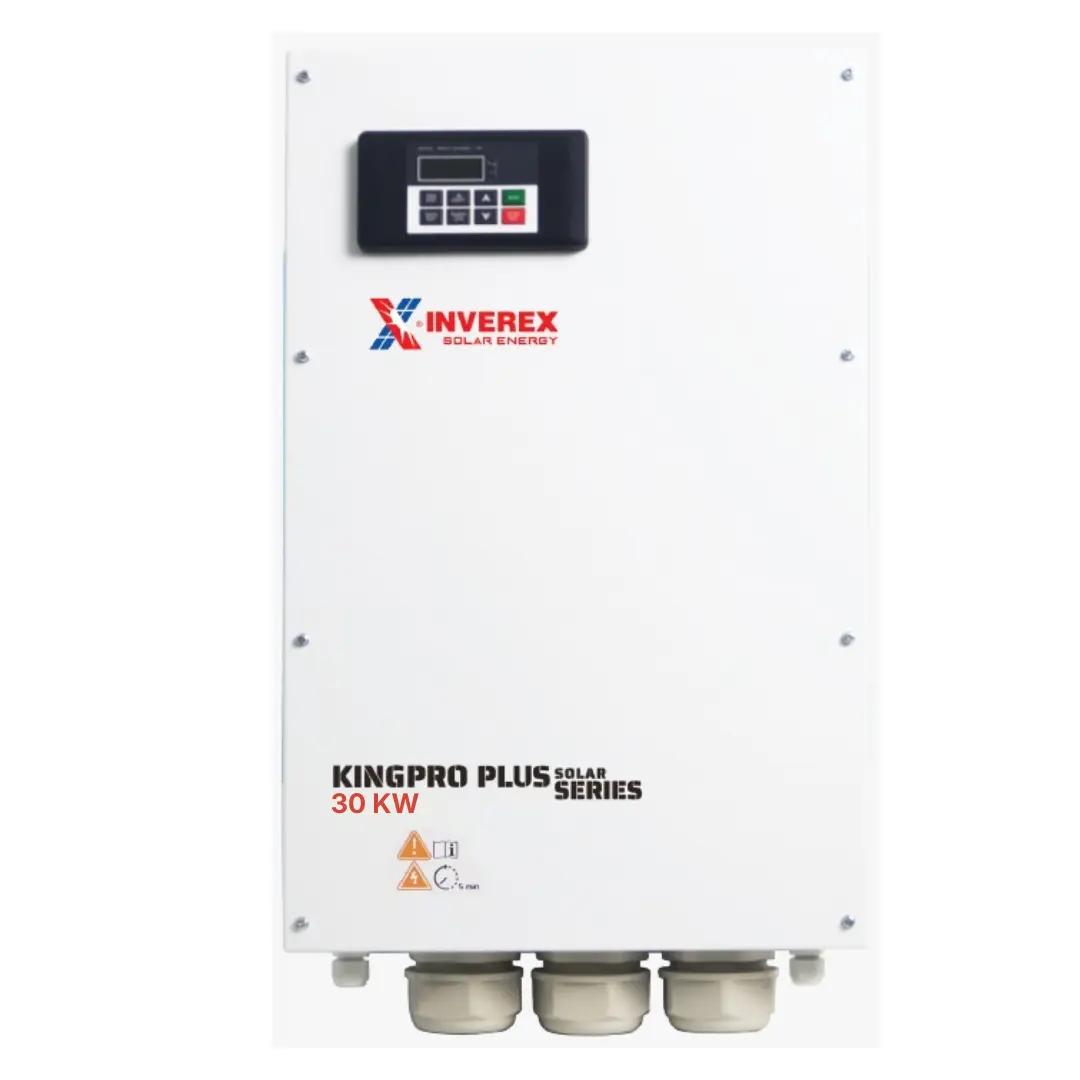

VFD KING PRO PLUS IP-65 30KW Solar Variable Frequency Drive in Karachi

Are escalating K-Electric tariffs and frequent grid power fluctuations cutting into your operational margins in Karachi? Running heavy 30KW (40 Horsepower) three-phase water pumps or industrial motor machinery on standard grid power or expensive diesel generators places a heavy financial burden on your enterprise. The VFD KING PRO PLUS IP-65 30KW solar variable frequency drive provides a reliable, highly efficient, and cost-effective path to power your 40 HP motor loads directly with clean solar energy. Designed for heavy commercial and industrial demands, this high-capacity drive enables facilities across Karachi to transition to solar power and lower their monthly energy bills.

Whether your site is in SITE Industrial Area, Korangi Industrial Zone, Landhi, Federal B Area, Port Qasim, or large agricultural estates in Malir and Gadap, this 30KW solar VFD delivers stable power while safeguarding your heavy equipment.

Built to Excel in Coastal Air and Outdoor Environments

Operating heavy power electronics outdoors in Karachi presents real environmental challenges. Salty sea breezes from the Arabian Sea, intense ambient summer heat, thick dust accumulation, and high humidity levels can ruin standard indoor drives. The VFD King Pro Plus IP-65 30KW is engineered specifically to withstand these local outdoor conditions without needing extra protective rooms.

1. Robust Weatherproof IP65 Outer Enclosure

Standard indoor variable frequency drives require climate-controlled steel enclosures or specialized pump houses to prevent damage from dust and humidity. In contrast, the King Pro Plus 30KW features a fully sealed IP65 industrial casing. This housing protects internal circuitry against fine sand, airborne dust particles, rain, and direct water jets. You can safely mount this unit outdoors near open tubewell boreholes, water reservoirs, or factory grounds anywhere in Karachi.

2. Dual Solar DC and Grid AC Hybrid Input Logic

Power reliability across industrial and commercial zones in Karachi can be unpredictable, with unexpected load shedding and voltage drops. The King Pro Plus 30KW includes dual-input hybrid operation. It accepts high-voltage DC power directly from solar PV arrays up to 900V DC, along with standard three-phase 380V to 440V AC utility power or generator supply. During peak daylight hours, the drive operates your 40 HP motor entirely on free solar energy. When sunlight dims or during night operations, it switches to grid or generator supply without interrupting pump operation.

3. Automated Soft-Start Motor Protection

Starting a massive 30KW (40 HP) motor directly on line power generates huge current spikes that can trip main circuit breakers, drop line voltage, and strain mechanical pipe joints. The King Pro Plus 30KW features automated soft-start control that ramps up motor speed gradually. This controlled acceleration eliminates starting current surges, protects pipeline connections from water hammer damage, and extends the overall operational lifespan of your motor.

Advanced Software Logic and Key Performance Features

The VFD King Pro Plus IP-65 30KW pairs intelligent automated software with heavy-duty internal power components to maximize water flow and energy efficiency.

• Up to 99% DC Power Conversion Efficiency: Built-in Maximum Power Point Tracking (MPPT) logic adapts continuously to changes in sunlight intensity to extract maximum solar wattage from your solar modules throughout the day.

• Fully Automated Plug and Play Control: Smart automation starts the drive automatically at sunrise and powers it down at sunset based on available solar irradiance, removing the need for manual switch operation.

• Direct Float Switch Sensor Connectivity: Dedicated control terminals allow direct connection to water level float switches without adding extra external relays. The system stops pumping automatically when storage tanks are full and restarts when water levels drop.

• Broad Motor Compatibility: Works smoothly with standard three-phase AC induction motors as well as modern high-efficiency Permanent Magnet Synchronous Motors (PMSM) using advanced control algorithms.

• Optional GPRS Remote Monitoring: Connect an optional GPRS communication module to track live operational frequency, output current, running voltage, and system alerts directly on your smartphone from anywhere in Karachi.

Heavy-Duty Pumping Applications Across Karachi

A 30KW (40 HP) capacity solar drive is tailored for high-volume liquid handling and heavy commercial motor loads across Karachi.

• Industrial Manufacturing Plants: Powers heavy cooling towers, chemical transfer systems, and process water circulation pumps in SITE, Korangi, Landhi, and FB Area industrial zones.

• Large Residential Apartments and Commercial Towers: Handles high-volume water lifting from underground suction sumps to overhead roof storage tanks in high-rise plazas across Clifton, DHA, and PECHS.

• Commercial Agriculture and Deep Tubewells: Drives heavy 40 HP submersible tubewell pumps and agricultural canal irrigation systems in Malir, Gadap, and Gharo.

• Commercial Reverse Osmosis Plants and Water Utility Services: Provides consistent, pressure-regulated water supply for commercial reverse osmosis filtration plants and municipal distribution setups.

Detailed Technical Specifications Table

Dedicated Local Sales and Technical Support in Karachi

We focus strictly on supplying commercial, industrial, and agricultural solar drive solutions to clients in Karachi. Ordering your VFD King Pro Plus IP-65 30KW through us ensures authentic equipment backed by responsive local technical support.

• Express Site Delivery Across Karachi: Direct shipping to your factory floor, commercial building, or agricultural site anywhere in Karachi.

• 100% Original Certified Equipment: All drives are factory-sealed and come with official 2-year manufacturer warranty documentation.

• Technical Sizing Guidance: Our technical team offers guidance on solar panel array sizing, string matching, cable selection, and parameter settings optimized for your 40 HP motor load.

Cut Your Power Overhead Costs Today

Do not let high electricity tariffs lower your business profitability. The VFD KING PRO PLUS IP-65 30KW offers a weatherproof, durable, and intelligent way to run your 40 HP motor pumps on clean solar energy.

Contact our Karachi sales team today to check stock availability, request competitive price quotes, or discuss system configuration for your facility.
